• INSPECTION EQUIMENT

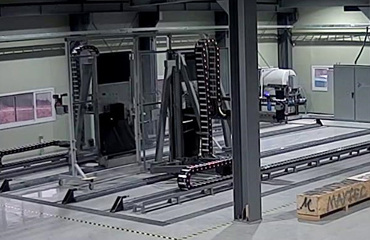

Through Transmission

ManufacturerMATEC(USA)

Model10 Axis Gantry C Scan System

Capacity- X = 10,000mm / Y = 2,000mm / Z = 1,500mm
- A = +/- 70° / B = +/- 90°
- Resolution : X,Y,Z(0.01mm), A,B(0.02°)
- Repeatability : X,Y,Z(0.1mm), A,B(0.1°)
- High Scan Speed : 30 inches/second
- Software : ARAGON

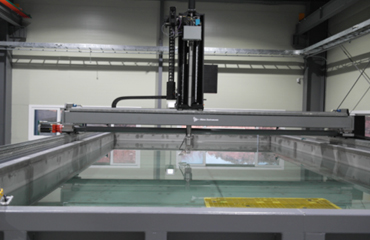

Immersion Pulse Echo

ManufacturerMATEC(USA)

Model5 Axis C Scan Pulse Echo

Capacity- X = 6,000mm / Y = 3,000mm / Z = 1,000m
- A = +/- 90° / B = +/- 90°
- Resolution : X,Y,Z(0.01mm), A,B(0.02°)
- Repeatability : X,Y,Z(0.1mm), A,B(0.1°)
- OEMPA 64 Phased Array System
- Software : ARAGON

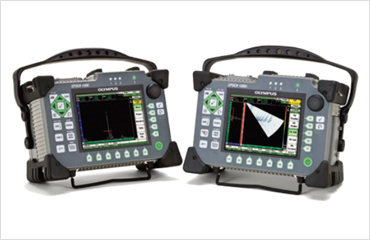

Ultrasonic Flaw Detector

ManufacturerNAWOO(KOREA)

ModelUltrasonic Flaw Detector EPOCH 1000 Series

Capacity- 37 digital receiver filter selections
- 6 kHz pulse repetition rate for high speed scanning
- Digital high dynamic range receiver

Coordinate Measuring Machine

ManufacturerHEXAGON Metrology(Italy)

ModelALPHA Image 25.50.15

Capacity - MPEP : 6.5µm
- Resolution : 0.1 µm
- Software – PC DMIS 2014.1 CAD++
- Sensing Direction : 5 way ±X, ±Y, ±Z
